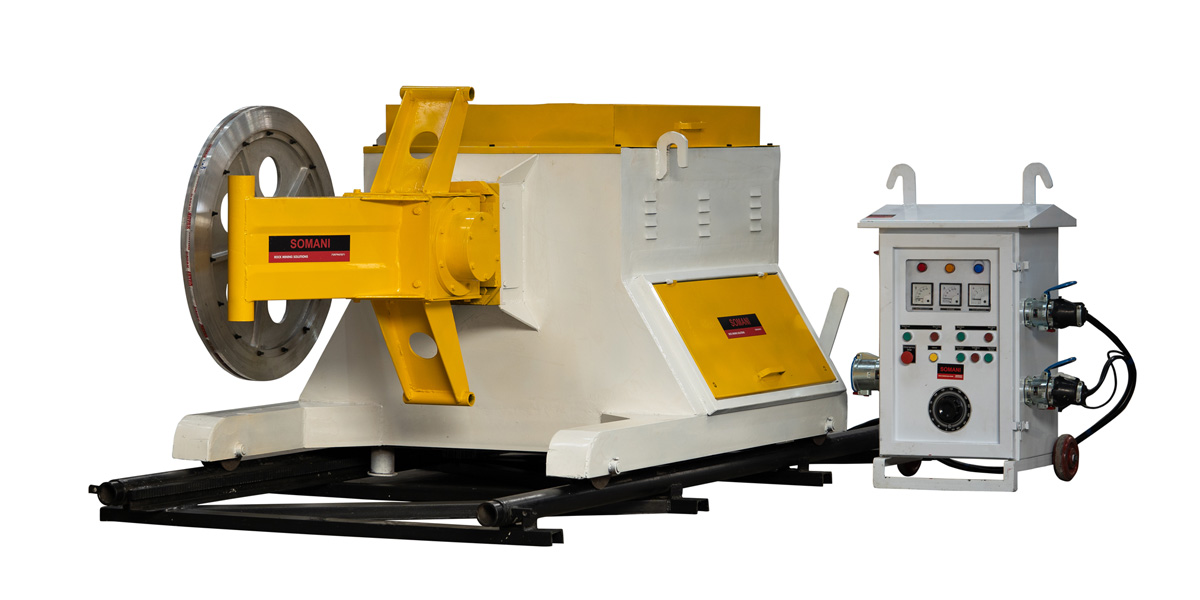

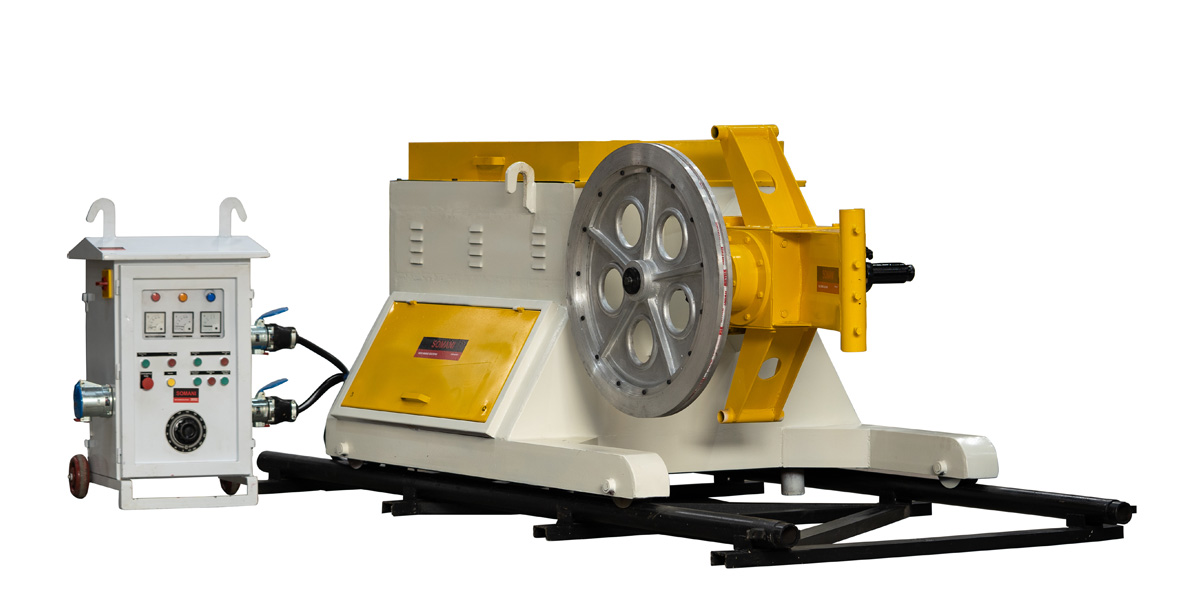

Wire Saw Machine
Somani Industries manufacturing and supplying of high performing range of Wire Saw Machine that is manufactured from high quality materials, thus ensure high durability.This Wire Saw is designed in conformation to international standards. This Machine facilitates the mining & dressing of blocks. It can cut on any level vertical, inclines or horizontal. Highly acknowledged for high strength, optimum finish, sturdy construction and durability, this Wire Saw Machine is extensively demanded in various industrial sectors.
TECHNICAL DETAILS:
| DESCRIPTION | 20 HP | 40 HP | 60 HP | 75 HP |
|---|---|---|---|---|
| TYPE OF MACHINE | DIRECT DRIVE | GEARBOX TYPE | GEARBOX TYPE | GEARBOX TYPE |
| RPM | 960 | 630 | 630 | 630 |
| REQUIRED WATER FLOW | 8 LTS/MIN | 10 LTS/MIN | 10 LTS/MIN | 12 LTS/MIN |
| REQUIRED POWER SUPPLY | 415 VOLTS AC/ 3 PHASE; 50HZ | 415 VOLTS AC/ 3PHASE; 50HZ | 415 VOLTS AC/ 3 PHASE; 50HZ | 415 VOLTS AC/ 3 PHASE; 50HZ |
| MAIN MOTOR | 20HP 960RPM | 40HP 1440RPM | 60HP 1440RPM | 75HP 1440RPM |
| FEED MOTOR | 1HP | 1HP (2HP OPTIONAL) | 1HP (2HP OPTIONAL) | 1HP (2HP OPTIONAL) |
| TRACK (RAILING) SIZE | 13 FEET | 20 FEET | 20 FEET | 20 FEET |
| ALLUMINIUM FLYWHEEL DIA | 600/625 MM | 790/800 MM | 790/800 MM | 790/800 MM |
Specifications:
- Wet Cutting
- Fast & Easy Cutting
- Long life
- Superior performance
Wire Saw Machine

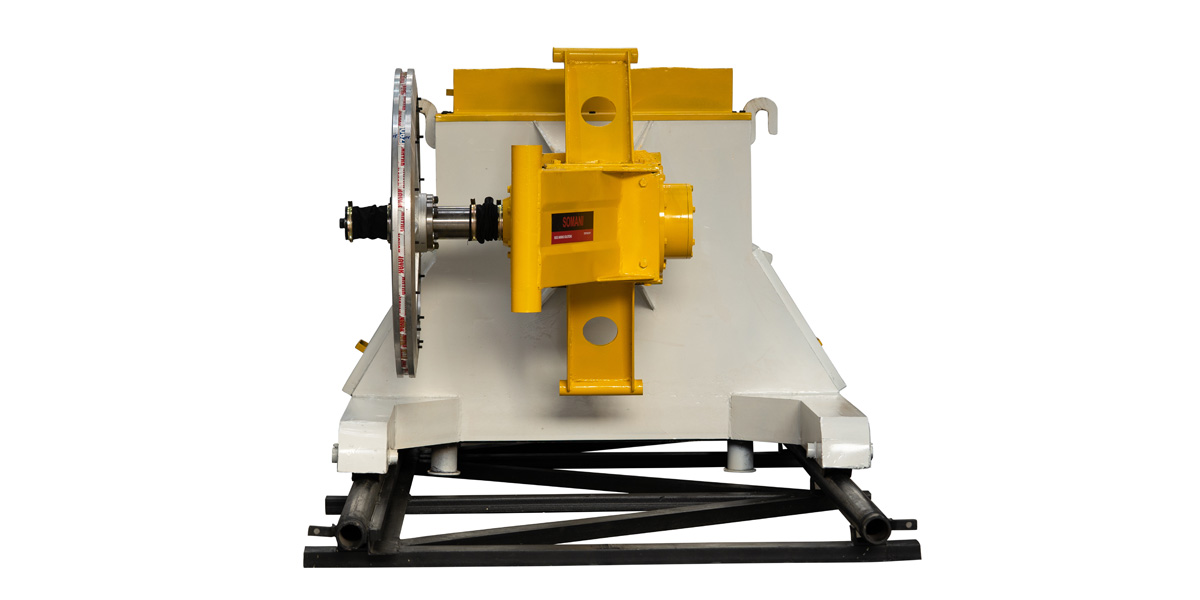

Single Shaft Wire Saw Machine:
- More rigid gearbox than Conventional wire saw
- Maintenance-free as the spindle and shaft is a single unit
- The flywheel is easily be changeable on site
- Easy movement of the flywheel on the shaft
- Complete movement of the wheel and the gearbox can be operational using a single spanner
